Video-dedicated Microscope Objectives
37mm Working Distances
Designed for Use in Conjunction with Other Infinity Products

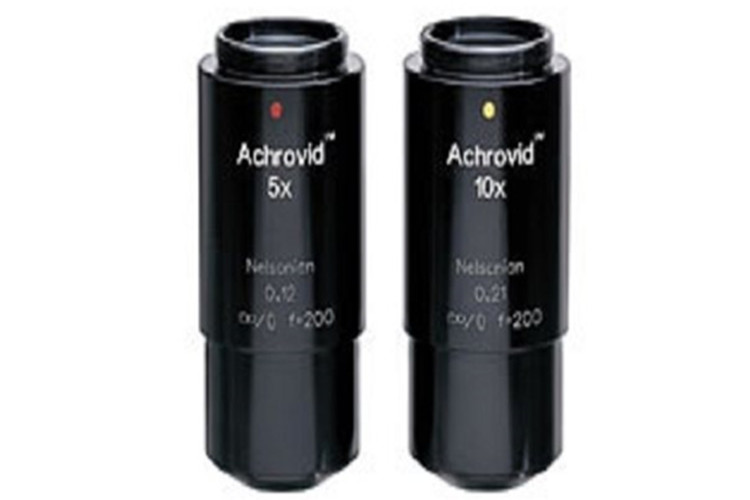

The newly-developed Infinity Achrovid™ series is a cost-effective complement to traditional Mitutoyo Long Working Distance objectives. All Achrovid™ objectives have a 26mm Whitworth common thread and are compatible, via adapter, with the InfiniTube™ In-Line Assembly system.
型号：
CCW-121
CCW-122
CCW-123
CCW-124
CCW-790
CCW-791
放大率
2X
2.5X
3.3X
4X
5X
10X
工作距离(mm)
37
37
37
37
37
17.5
数字孔径NA
0.054
0.064
0.077
0.09
0.12
0.21
分辨能力(μm)
6.2
5.2
4.3
3.7
2.8
1.6
景深(μm)
91
75
45
25
16
4.5
焦距FL (mm)
100
80
60
50
40
20
类型
Microscope Objective
Microscope Objective
Microscope Objective
Microscope Objective
Microscope Objective
Microscope Objective
方式
Infinity Corrected
Infinity Corrected
Infinity Corrected
Infinity Corrected
Infinity Corrected
Infinity Corrected
水平视场, 1/2"传感器:
3.20mm
2.56mm
1.94mm
1.60mm
1.28mm
0.64mm
水平视场, 2/3"传感器:
4.40mm
3.52mm
2.67mm
2.20mm
1.80mm
0.88mm
生产商:
Infinity
Infinity
Infinity
Infinity
Infinity
Infinity
安装螺纹
M26 x 36 TPI
M26 x 36 TPI
M26 x 36 TPI
M26 x 36 TPI
M26 x 36 TPI
M26 x 36 TPI
重量(g)
96
96
96
96
96
96
