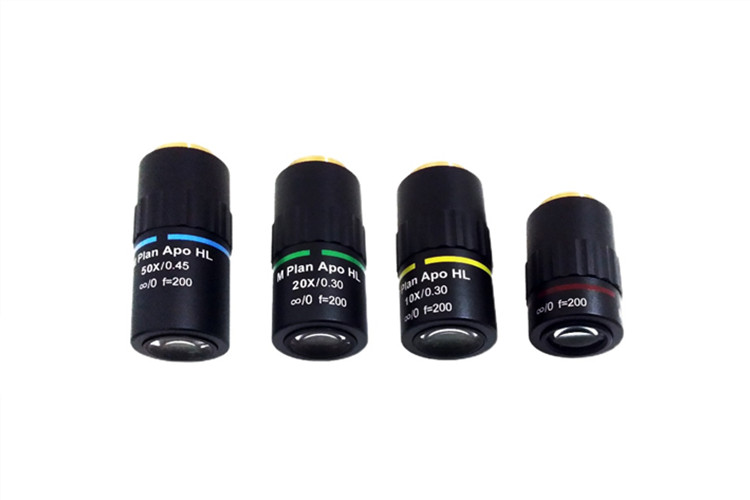

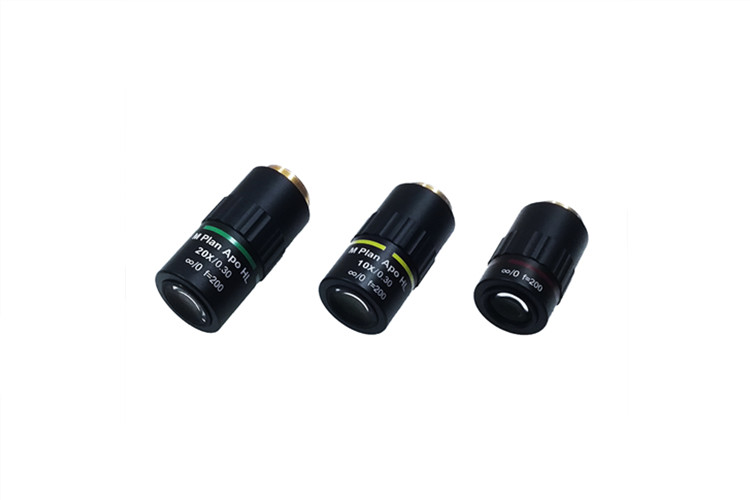

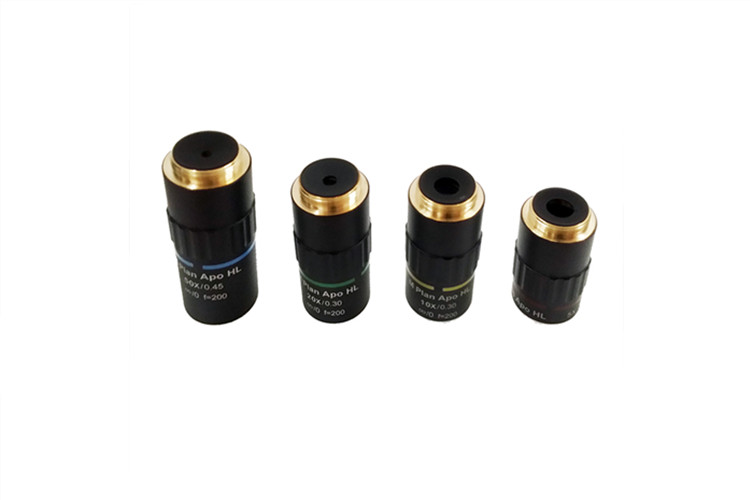

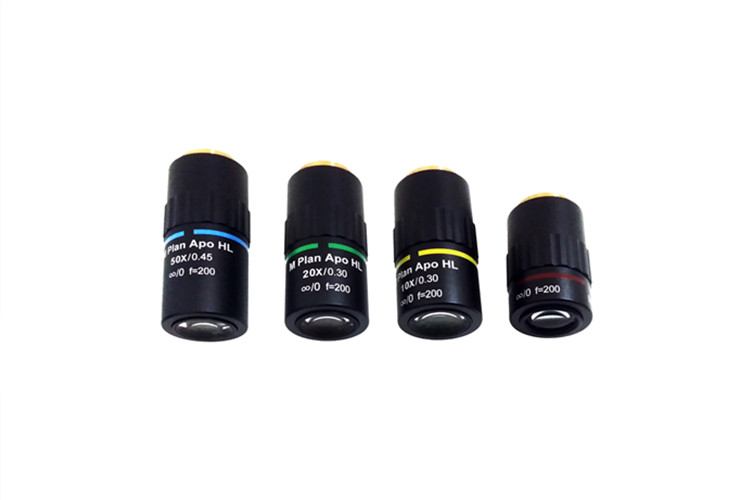

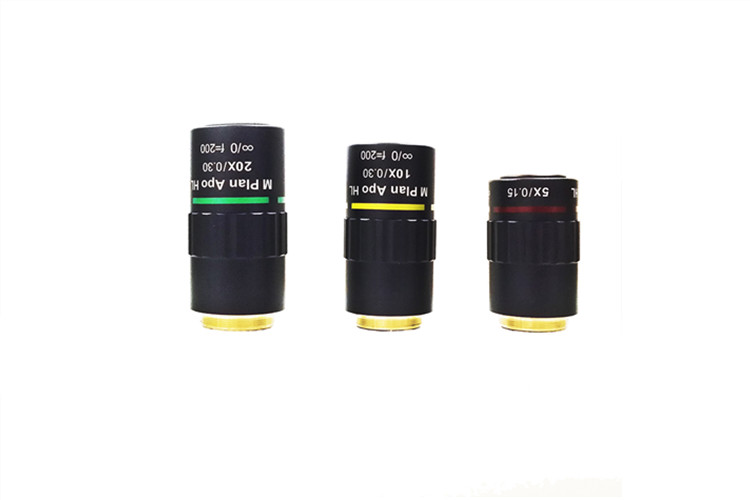

产品名称: CXW大数值孔径全复消色差95mm金相物镜5X/10X/20X/50X/100X
规格: 型号 | 倍数Mag | 数值孔径NA | 工作距离WD(mm) | 焦距f | 分辨率R | 景深D.F |
CXW-2X | 2X | 0.055 | 34.6 | 100mm | 6.5μm | 110μm |
CXW-5X | 5X | 0.15 | 45 | 40mm | 2.5μm | 18um |
CXW-10X | 10X | 0.3 | 34 | 20mm | 1.0μm | 3.5um |
CXW-20X | 20X | 0.3 | 31 | 10mm | 1.0μm | 3.5mm |
CXW-50X | 50X | 0.45 | 20.16 | 4mm | 0.7μm | 1.6um |
CXW-100X | 100X | 0.8 | 6 | 2mm | 0.5μm | 0.6um |
