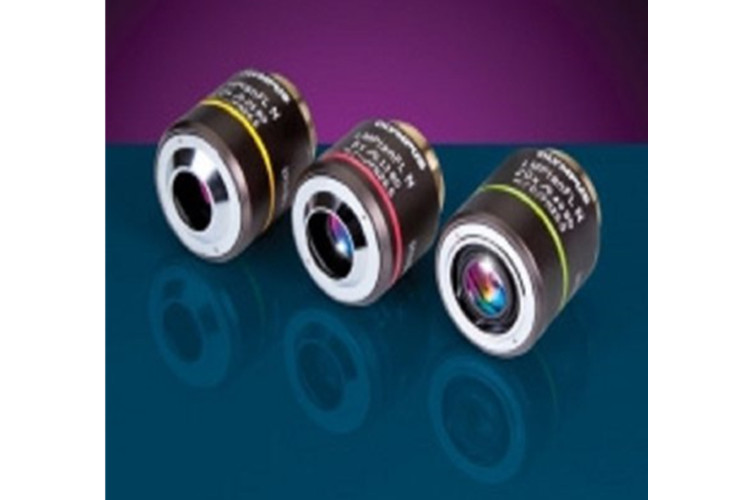

Olympus 长工作距离 M-Plan 荧光物镜是使用各种照明方法的应用的选择。Olympus 长工作距离 M-Plan 荧光物镜的长工作距离可提高样本安全性，还可提高观察对比度。这些物镜具有标准的光瞳位置，可在微分干涉对比 (DIC) 光学显微应用中使用多个棱镜或偏振片。
型号 | 放大率: | 数字孔径NA: | 工作距离 | 直径(mm): | Field Number | 长度(mm): | 透射率(%) : | 视场(mm): | 安装螺纹: |
MPLFLN 2.5X | 2.5X | 0.08 | 10.7 | 30 | 26.5 mm | 34.3 | >90 from 400-700nm | 10.6 | 20.32 x 0.706 (RMS) |
LMPLFLN 5X | 5X | 0.13 | 22.5 | 26 | 26.5 mm | 22.5 | >90 from 400-700nm | 5.3 | 20.32 x 0.706 (RMS) |
MPLFLN 5X | 5X | 0.15 | 20 | 26 | 26.5 mm | 25 | >90 from 400-700nm | 5.3 | 20.32 x 0.706 (RMS) |
LMPLFLN-BD 5X | 5X | 0.13 | 15 | 32 | 26.5 mm | 30 | >90 from 400-700nm | 5.3 | M26 x 36 TPI |
LMPLFLN 10X | 10X | 0.25 | 21 | 26 | 26.5 mm | 24 | >90 from 400-700nm | 2.65 | 20.32 x 0.706 (RMS) |
MPLFLN 10X | 10X | 0.3 | 11 | 26 | 26.5 mm | 34 | >90 from 400-700nm | 2.65 | 20.32 x 0.706 (RMS) |
LMPLFLN-BD 10X | 10X | 0.25 | 10 | 32 | 26.5 mm | 35 | >90 from 400-700nm | 2.65 | M26 x 36 TPI |
LMPLFLN 20X | 20X | 0.4 | 12 | 26 | 26.5 mm | 33 | >90 from 400-700nm | 1.3 | 20.32 x 0.706 (RMS) |
LMPLFLN-BD 20X | 20X | 0.4 | 12 | 32 | 26.5 mm | 33 | >90 from 400-700nm | 1.3 | M26 x 36 TPI |
LMPLFLN 50X | 50X | 0.5 | 10.6 | 26 | 26.5 mm | 34.4 | >90 from 400-700nm | 0.53 | 20.32 x 0.706 (RMS) |
LMPLFLN-BD 50X | 50X | 0.5 | 10.6 | 32 | 26.5 | 34.4 | >90 from 400-700nm | 0.53 | M26 x 36 TPI |
LMPLFLN 100X | 100X | 0.8 | 3.4 | 26 | 26.5 | 41.6 | >90 from 400-700nm | 0.26 | 20.32 x 0.706 (RMS) |
LMPLFLN-BD 100X | 100X | 0.8 | 3.3 | 32 | 26.5 | 41.7 | >90 from 400-700nm | 0.26 | M26 x 36 TPI |
