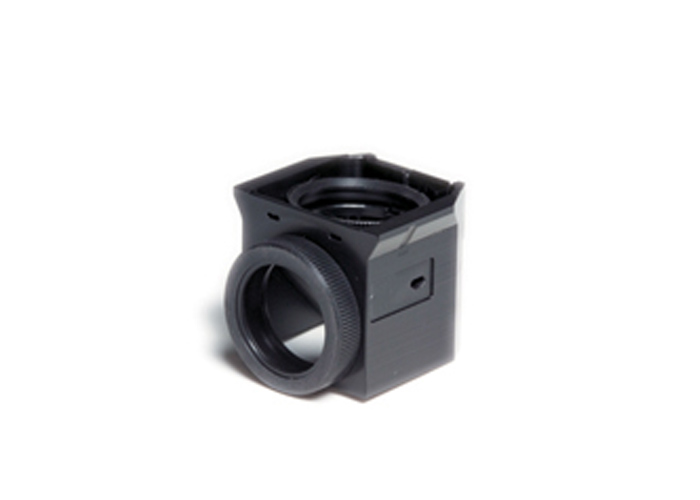

TE 2000 Fluorescence Filter Holder for Nikon Microscopes
General information
| Specification | Value |
| Microscope Manufacturer | Nikon |
| Compatible Microscope(s) | TE 2000, 50i, 55i, 80i, 90i, Eclipse Ti, Ni, and Ci series, and any using the Epi-fluor Illuminator |
Filter Size Information
| Specification | Value |
| Exciter Diameter | 25.0 mm |
| Exciter maximum thickness | 5.0 mm |
| Emitter Diameter | 25.0 mm |
| Emitter maximum thickness | 3.5 mm |
| Beamsplitter Dimensions (L x W) | 25.2 mm x 35.6 mm |
| Beamsplitter maximum thickness | 1.1 mm |
| Note | This cube can be purchased individually or with filters. When ordering, specify "NTE" and if you would like complimentary filter mounting to be performed by our certified staff |
Assembly Instructions
| Specification | Value |
| Documentation | Download assembly instructions |
| Video | Watch our cube assembly video |
亲们请注意：滤光片支架没有全部展示在店铺，本店铺里没找到合适您用的，请直接联系店主索取更详细的资料或者可以自行登录到semrock网（http://www.semrock.com）挑选您适合的产品之后联系我们店主！
