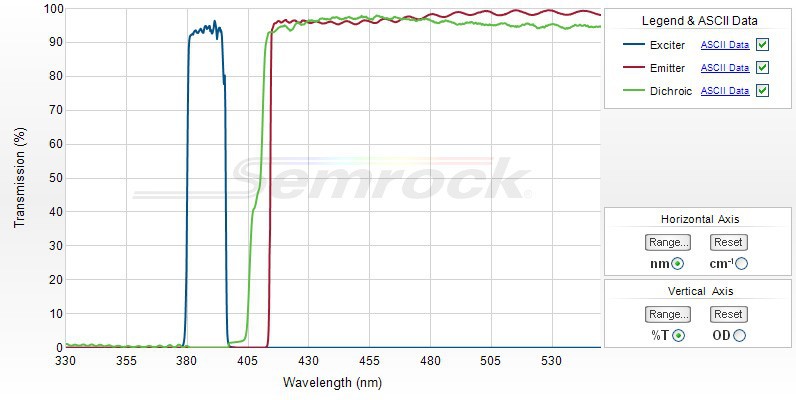

Optical Specifications
| Specification | Value |
| Blocking | BrightLine filters have blocking far exceeding OD 6 as needed to ensure a black background, even when using modern low-noise CCD cameras. The blocking is optimized for microscopy applications using our exclusive SpecMaker™ fluorescence filter design. |
General Filter Specifications
| Specification | Value |
| Microscope Compatibility | BrightLine filters are available to fit Leica, Nikon, Olympus, Zeiss, and Aperio microscopes. |
| Optical Damage Rating | Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hours. |
Physical Filter Specifications
| Specification | Value |
| Scratch-Dig | 60-40 |
| Exciter/Emitter Orientation | Arrow on ring indicates preferred direction of propagation of light. |
| Dichroic Orientation | "Reflective coating side" should face toward light source and sample. |
亲们请注意：滤光片没有全部展示在店铺，本店铺里没找到合适您用的，请直接联系店主索取更详细的资料或者可以自行登录到semrock网）挑选您适合的产品之后联系我们店主！
注意事项:
我们很高兴你能和我们合作。为了节省你的时间，在选择产品时，请查看参数或与我们的销售沟通，避免你购买的产品，因参数与你的使用要求不一致，耽误你的工期进度。我们再次感谢你的支持。
